Solid polycarbonate sheets offer outstanding impact resistance—up to 250 times that of glass—and UV protection for extended outdoor use. Available in transparent, translucent, opal, and colored finishes, they are widely used in safety glazing, machine guards, signage, and protective barriers.
General-Purpose Pc Solid Sheet (Single-sided UV/Double-sided UV)
Standard Thickness (mm) | Weight (kg/㎡) | Minimum Bend Radius (mm) | Standard Width (mm) | Standard Length(mm) | Standard Colors | Major Applications |
| 1.5 | 1.8 | 225 | 1220 | 3000 Customizable | Transparent, Green, Blue, Bronze, Opal, Glass Color, Lake Blue | Sports venues, industrial buildings, warehouses, walkways, carports, swimming pool roofs, greenhouse covers, riot shields, advertising boards, light boxes, skylight canopies, light hoods, eco-restaurants, bus stops, etc. |
| 2.0 | 2.4 | 300 | 1560 | |||
| 2.7 | 3.24 | 375 | 1820 | |||
| 3.0 | 3.6 | 450 | 2100 | |||
| 4.5 | 5.4 | 675 | 2300 |
High-Strength Pc Solid Sheet (Double-sided UV)
Standard Thickness (mm) | Weight (kg/㎡) | Standard Width (mm) | Standard Length(mm) | Standard Colors | Major Applications |
| 8.0 | 9.6 | 1220 | 3000 6000 Customizable | Transparent, Green, Blue, Bronze, Opal, Glass Color, Lake Blue | Stadiums, factories, swimming pools riot-proof doors, large skylights, curtain walls, museum display cabinets, banks, airports, gas stations, doors and windows, outdoor elevators, windbreaks prisons, partitions, floor-to-ceiling windows, staircases, sunrooms, etc. |
| 10.0 | 12.0 | 1560 | |||
| 12.0 | 14.4 | 1820 | |||
| 14.0 | 16.8 | 2100 | |||
| 16.0 | 19.2 | 2300 |
Main Applications Light Transmission Rate of Pc Structural Sheet Series
| Standard Thickness(mm) | 2.0 | 2.7 | 3.0 | 4.5 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | 20.0 |
| Color (Transparent) | 89% | 88% | 88% | 87% | 86% | 83% | 82% | 81% | 77% | 75% | 73% | 72% |
Granular Polycarbonate Sheet / Polycarbonate Frosted Sheet (Double-sided UV)
Standard Thickness(mm) | Vinimun Bend Radius(mm) | Standard Width (mm) | Standard Length(mm) | Standard Colors | Major Applications |
| 1.5 | 225 | 1220/1560/1820/2100/2300 | 30000 Customizable | Transparent, Green, Blue, Bronze, Opal | Bathroom facilities, decoration, illumination, partitions, screens, canopies, ceilings, LED screens, non-reflective surfaces, frosted surfaces. |
| 2.0 | 300 | ||||
| 3.0 | 450 | ||||
| 4.5 | 675 | 1220/1560/1820/2100/2300 | 3000/6000/10000 Customizable | ||
| 6.0 | 900 | ||||
| 8.0 | 1200 | ||||
| 10.0 | 1500 | ||||
| 12.0 | 1800 |
Note: Special colors and sizes can be customized as per customer requirements

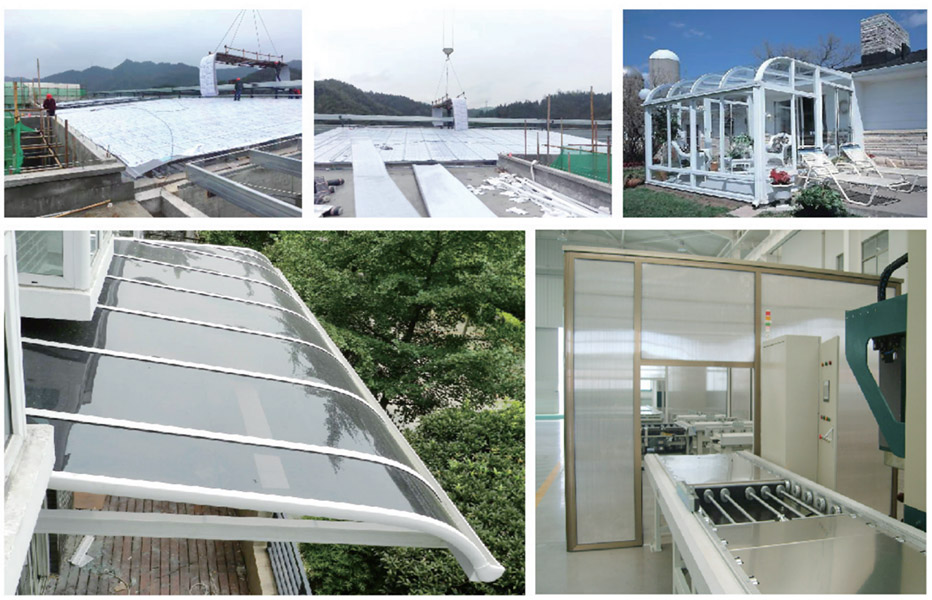

Key Project Cases
